Work Breakdown Structure Template: Decompose Deliverables Clearly

Build a deliverable-oriented WBS

Begin with the approved result boundary, decompose results rather than activities, stop at accountable work packages, and review each parent against the 100% rule without asking software to make a semantic judgment.

1. Freeze the declared result and exclusions

   Give the WBS a stable ID, version, basis date, root element, included results, and explicit exclusions. The root represents the complete result inside that boundary. Link to the separately approved scope statement when one exists instead of letting the WBS silently redefine project authorization.

   Sources: [wbs-pack], [pmi-wbs], [nasa-wbs]

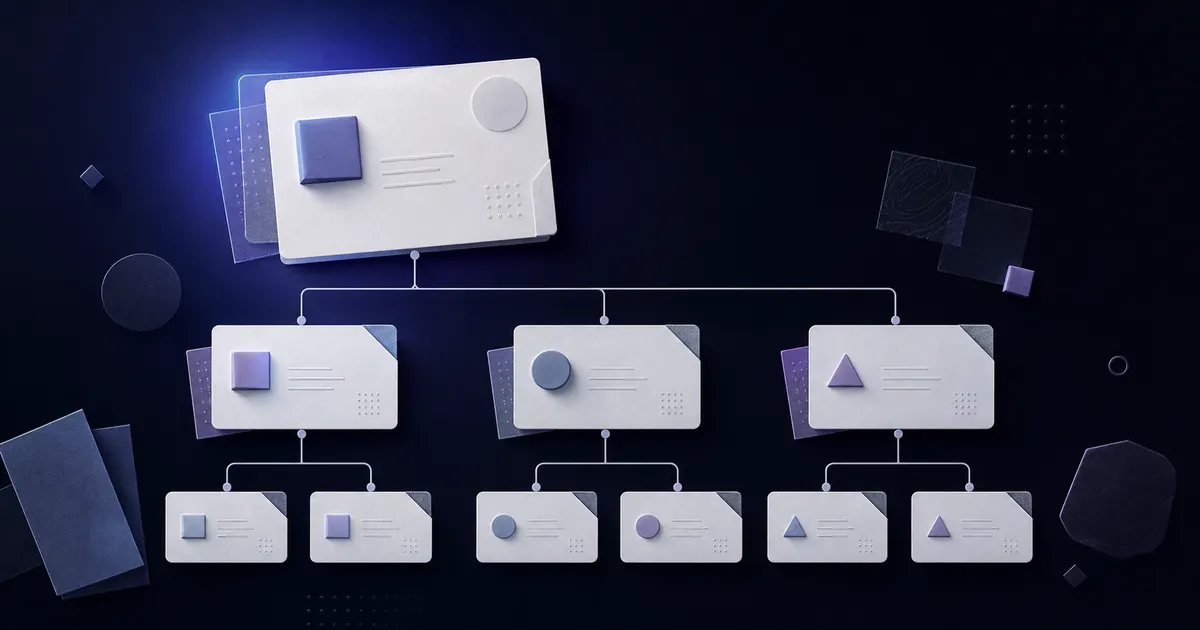

2. Decompose parent results into child deliverables

   Use stable element IDs and hierarchical codes to preserve parent-child relationships. Name deliverables as reviewable results, not activities, phases, departments, dates, or status labels. Each non-root element has one parent, and every parent needs enough child deliverables to explain its declared result.

   Sources: [pmi-wbs], [gao-cost-guide], [nasa-wbs]

3. Stop at accountable work packages

   Make each leaf a bounded work package with one accountable owner role, acceptance criteria, evidence requirements, and exclusions. The WBS identifies what result must exist and how it rolls up; a separate schedule or backlog can later identify activities, dependencies, sequencing, estimates, and execution state.

   Sources: [wbs-pack], [pmi-wbs], [gao-cost-guide]

4. Review the 100% rule at every parent

   Compare each parent with all direct children. Reviewers decide whether the children collectively cover the parent, avoid overlap, and add no out-of-scope result. Structural validation can detect missing IDs, broken parents, cycles, unreachable elements, and empty review fields, but it cannot understand whether human-authored scope is complete.

   Sources: [wbs-pack], [pmi-wbs], [gao-cost-guide]

The WBS ownership boundary

This template owns deliverable decomposition and the work-package definition record. It deliberately excludes the adjacent systems that schedule, prioritize, assign, authorize, or report that work.

Three WBS configurations

The hierarchy contract stays consistent while the deliverables change. Each configuration names results and work packages only, leaving schedule, backlog, organization, and status to their own records.

Decide whether the decomposition is reviewable

Use these rules before baselining or linking the WBS elsewhere. A structurally valid file can still contain incomplete or overlapping scope, so named reviewers must make the semantic decision.

1. A parent is expressed as a phase, activity, department, date, or status

   Choose: Rename the element as a deliverable result and move execution, organization, and reporting details to their dedicated records.

   Tradeoff: The WBS becomes less useful as a day-to-day tracker, but its hierarchy remains stable across different delivery methods and schedules.

2. A work package has no accountable owner, acceptance criterion, evidence requirement, or exclusion

   Choose: Keep decomposing or clarify the boundary until the leaf can be reviewed as a distinct result with a named accountability role.

   Tradeoff: Baselining waits, but teams avoid carrying an ambiguous leaf that cannot support review or downstream planning.

3. Two children overlap or the child set appears to omit part of the parent

   Choose: Revise the decomposition with the scope owner and record the coverage reasoning. Do not treat a passing validator as proof of the 100% rule.

   Tradeoff: Human review takes time, but the hierarchy does not hide double counting or unrepresented results.

4. Someone needs dates, sequence, backlog priority, assignment, or current progress

   Choose: Link the approved WBS element IDs from the separate schedule, project plan, backlog, resource record, or status report.

   Tradeoff: Several connected records must be maintained, but each system keeps one clear owner and does not overwrite the WBS boundary.

What the WBS cannot prove

A strict hierarchy improves traceability. Its usefulness still depends on the accuracy of the source scope, the judgment of reviewers, and controlled links to the systems that plan and record execution.

• Structural checks cannot determine whether child deliverables collectively cover a parent or overlap semantically.
• Stable IDs and codes do not prove that scope was approved, requirements are correct, or exclusions are acceptable.
• Owner roles record accountability only; they do not assign a person, establish capacity, or make an employment decision.
• Acceptance criteria and evidence requirements do not prove that criteria were met or evidence is authentic and current.
• The WBS contains no dates, dependencies, estimates, resources, status, percent complete, risks, costs, or release authorization.
• This ordinary informational article does not grant AI signup credits. Linked product pages follow their own current eligibility rules.

Primary and professional WBS references

These references support the decomposition model and review boundary. They do not endorse this pack, validate its fictional scope, or replace an organization-specific standard.

1. [wbs-pack] Playcode:Work breakdown structure fictional example

   Checked August 1, 2026. Supports: The locally verified root, three deliverables, six work packages, owner roles, acceptance records, evidence requirements, exclusions, hierarchy checks, CSV parity, and deterministic archive. Public availability remains unverified until deployment.

2. [pmi-wbs] Project Management Institute:Developing and Elaborating Effective Work Breakdown Structures

   Checked August 1, 2026. Supports: Deliverable orientation, hierarchical decomposition, work packages, the 100% rule at each parent-child level, textual or graphical representation, and the distinction between WBS structure and downstream schedule development.

3. [nasa-wbs] National Aeronautics and Space Administration:Work Breakdown Structure Handbook, NASA/SP-2010-3404

   Checked August 1, 2026. Supports: Product-oriented hierarchy, WBS and dictionary development, parent-child decomposition, work packages, responsibility, and project-management control context.

4. [gao-cost-guide] U.S. Government Accountability Office:Cost Estimating and Assessment Guide, GAO-20-195G

   Checked August 1, 2026. Supports: Product-oriented WBS best practices, traceability, parent-child hierarchy, appropriate decomposition detail, complete coverage, avoiding omitted or double-counted elements, and WBS dictionary context.
